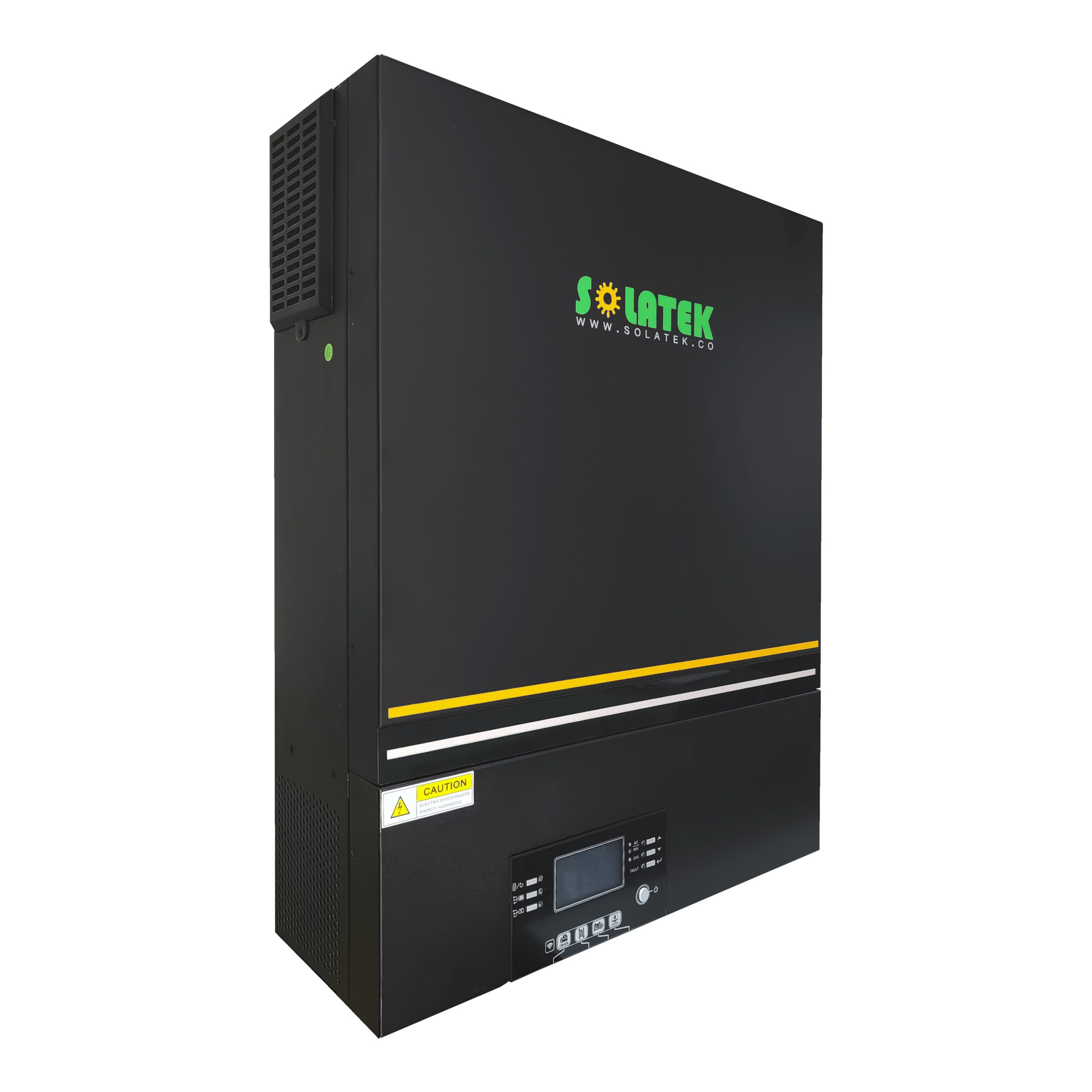

Solatek Max E Hybrid Off Grid 11KW 2MPPT
Description
The SOLATEK MAX E HYBRID OFF GRID 11KW 2MPPT is an advanced and upgraded hybrid off-grid solar inverter designed for higher energy demands and improved efficiency. With its 11KW capacity and dual MPPT technology, it ensures optimal solar energy harvesting and reliable power delivery for residential and commercial off-grid applications.
Engineered for performance and stability, this inverter efficiently converts solar energy into usable electricity, providing a sustainable and uninterrupted power solution. Its advanced hybrid design supports energy independence while maintaining high efficiency and system reliability.
Main Features & Specifications
| Rated Power | 11000W |
| Parallel Capability | Up to 6 units |
| Input Voltage | 230 VAC |
| Frequency Range | 50Hz / 60Hz |
| Surge Power | 22000 VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms |
| Maximum PV Array Power | 11000W |
| MPPT Voltage Range | 90–450 VDC |
| Maximum Solar Charge Current | 150 A |
| Dimension (D × W × H) | 147.4 × 432.5 × 553.6 mm |
| Communications | USB / RS232 / RS485 / Wi-Fi / Dry-contact |
| Operating Temperature | -10°C to 50°C |
