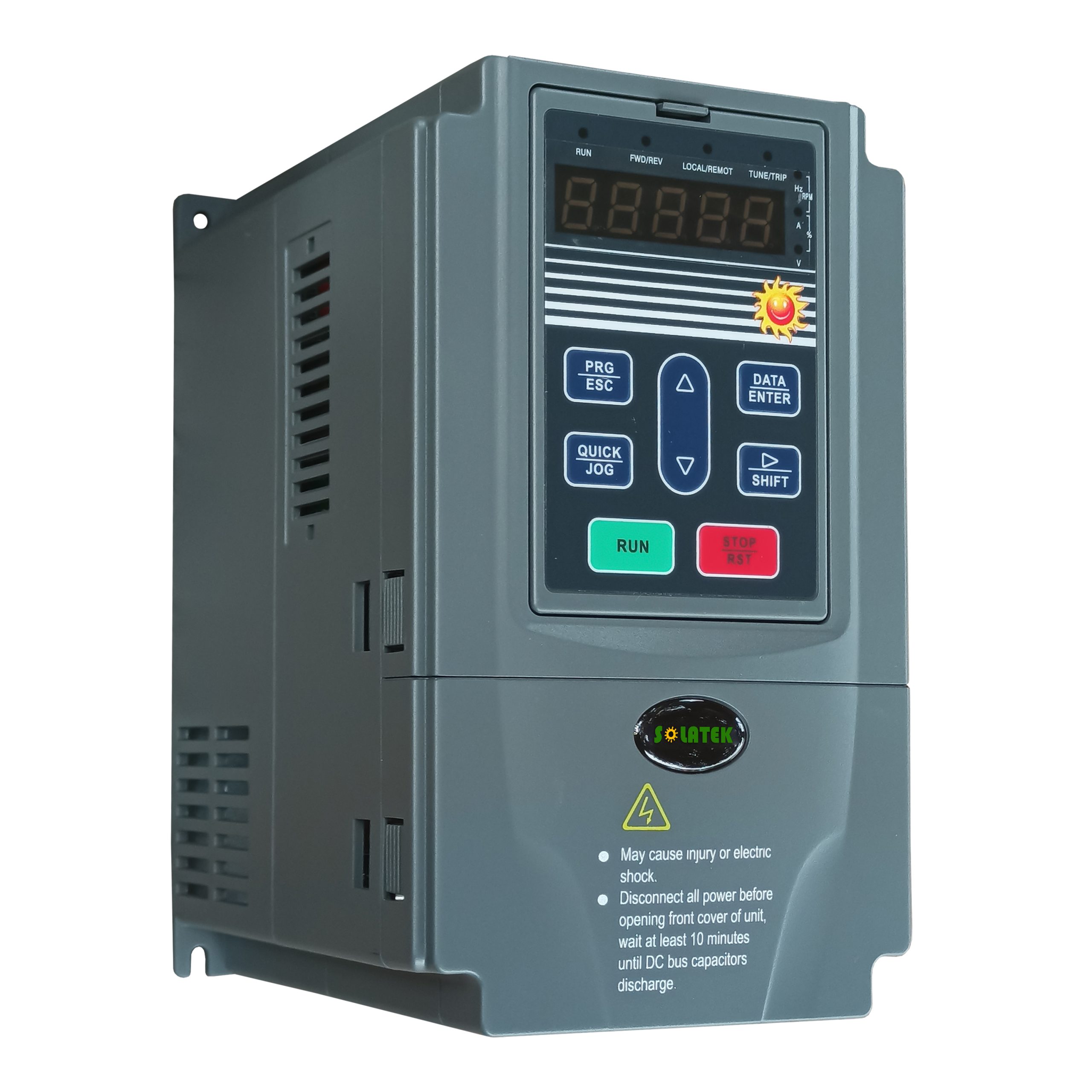

The solar pump inverter, also called a solar variable frequency drive, converts the direct current generated by solar panels into alternating current, thereby driving various AC motor water pumps including centrifugal pumps, irrigation pumps, deep well water pumps, and swimming pool pumps.
The inverter supports solar DC input as well as single-phase or three-phase AC power supply input, ensuring flexible and reliable operation in different environments.
Main Features & Specifications
| Input DC Voltage | 300~900VDC |
| Rated Power | 7.5KW |
| Max Input DC Voltage | 900VDC |
| MPPT Voltage (Vmp) | 550VDC |
| MPPT Efficiency | 99.90% |
| Input AC Voltage | 380/400/415/440VAC |
| Output AC Voltage | 0~380/400/415/440VAC |
| Output Frequency | 0~300 Hz |
| IP Level | IP20 |
