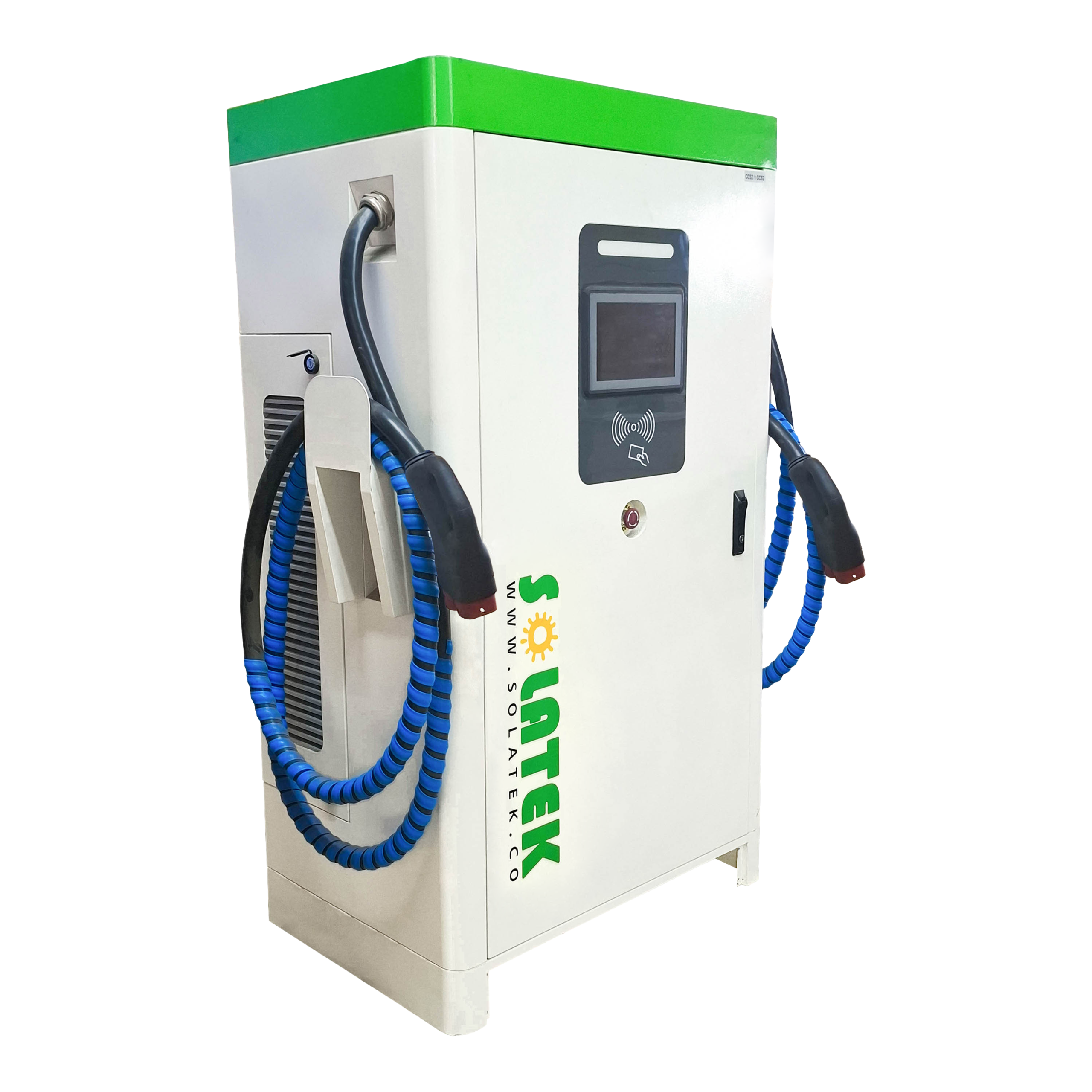

Solatek Fast Charger DC CCS2 120KW GREEN

Solatek DC Fast charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 85kWh battery pack could be charged up to 80% of its capacity in about 30minutes** (Depending on car’s supported charging protocol speed).

Solatek combines industry standardization with advanced charging technology to support next-generation electric vehicles. Its multi-protocol design allows for easy tailoring to support CHAdeMO, CCS1 & CCS2, Tesla, and GB/T for DC fast charging applications. Payment & billing platform solutions enable easy and secure payments via station payment terminals and RFID card.

Main Features & Specifications

Input Voltage AC380V±15%
Output Voltage 150 -1000 VDC
Max. Output Power 120KW
Max. Output Current 250A
Charging Interface Type CCS2
Cable Length 5m
LED Indicator Yes
Emergency Stop Yes
Installation Floor mounted
Protection Degree IP54
Dimensions (WxDxH) 90x60x160 cm
Weight < 350kg
Working Temperature -25℃ to +65℃
Power Factor ≥0.99
