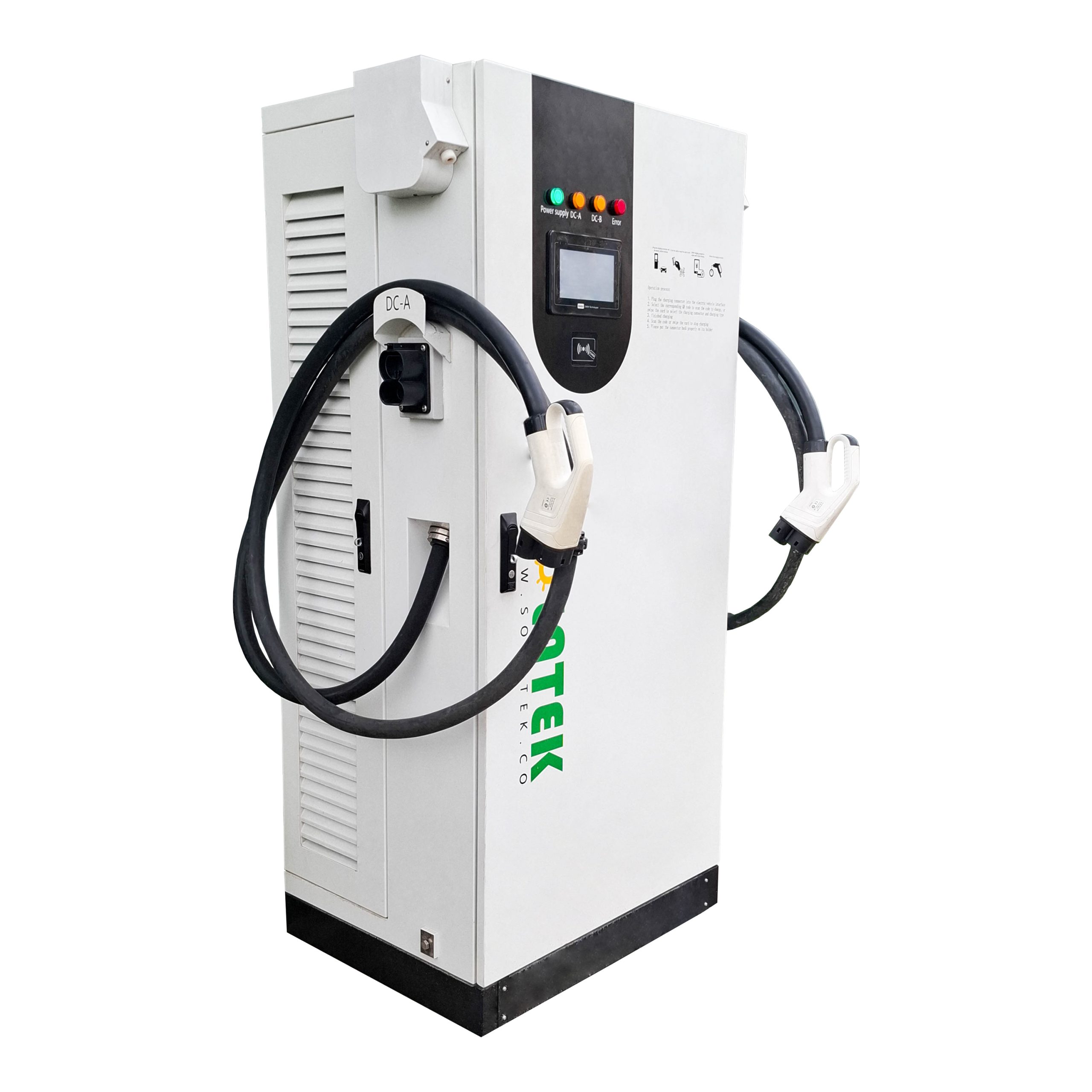

Solatek DC Fast charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 95kWh battery pack could be charged up to 80% of its capacity in about 20minutes** (Depending on car’s supported Charging protocol speed).
Solatek combines industry standardization with advanced charging technology to support next-generation electric vehicles. Its multi-protocol design allows for easy tailoring to support CHAdeMO, CCS1 & CCS2, Tesla, and GB/T for DC fast charging applications. Payment & billing platform solutions enable easy and secure payments via station payment terminals and RFID card.
Main Features & Specifications
| Input Voltage | AC380V±15% |
| Output Voltage | 200-1000VDC |
| Max. Output Power | 240KW |
| Max. Output Current | 250A |
| Charging Interface Type | CCS2 |
| Cable Length | 5m |
| LED Indicator | Yes |
| Emergency Stop | Yes |
| Installation | Floor mounted |
| Protection Degree | IP54 |
| Dimensions (WxDxH) | 80x60x180 cm |
| Weight | < 450kg |
| Working Temperature | -25℃ to 65℃ |
| Power Factor | ≥0.99 |
