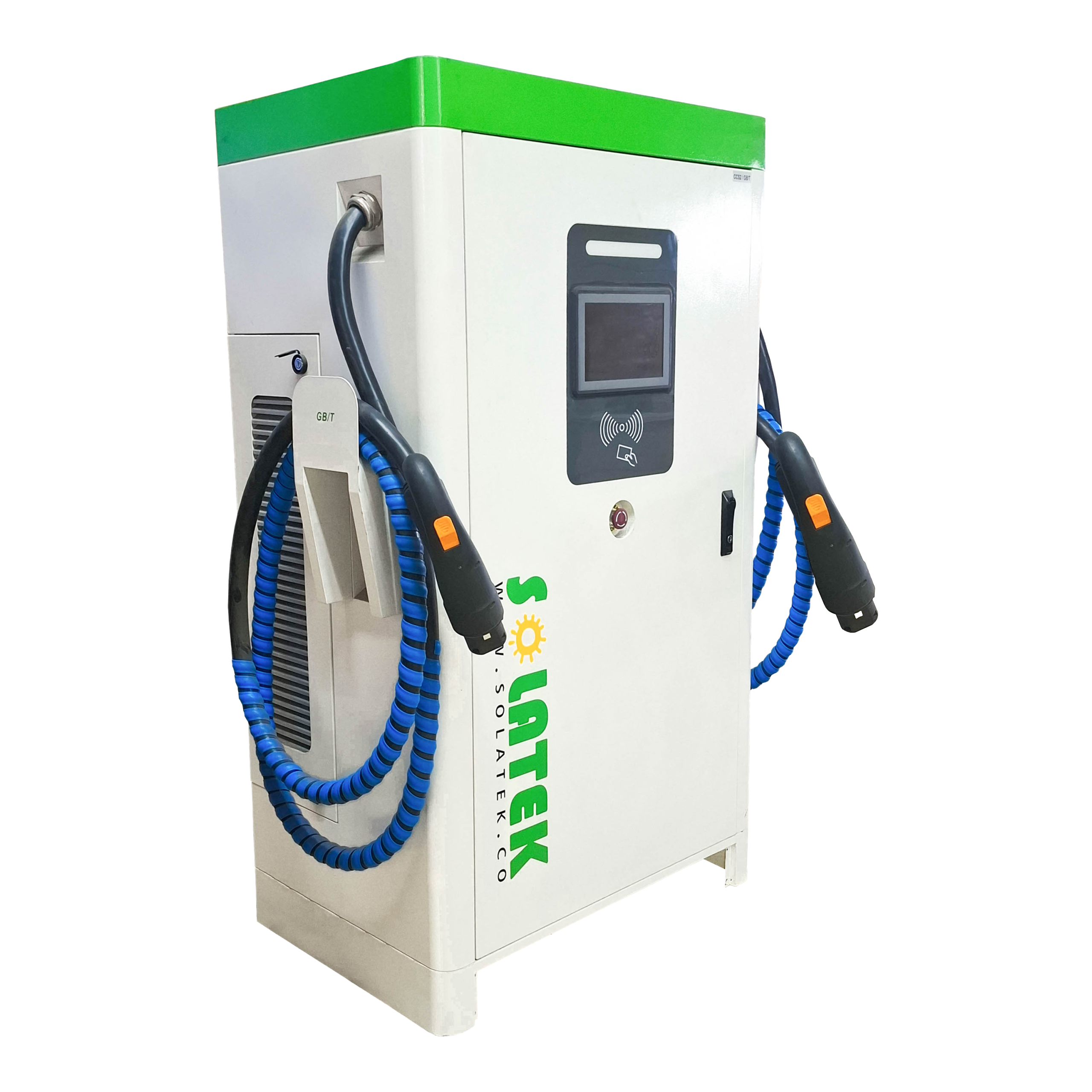

Solatek Fast Charger DC GBT 120KW Green

Solatek DC Fast charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 85kWh battery pack could be charged up to 80% of its capacity in about 30 minutes** (Depending on car’s supported charging protocol speed).
Solatek combines industry standardization with advanced charging technology to support next-generation electric vehicles. Its multi-protocol design allows for easy tailoring to support CHAdeMO, CCS1 & CCS2, Tesla, and GB/T for DC fast charging applications. Payment & billing platform solutions enable easy and secure payments via station payment terminals and RFID card.

Main Features & Specifications

Input Voltage 380 ±15% VAC
Output Voltage 150 – 1000 VDC
Max. Output Power 120KW
Max. Output Current 250A
Charging Interface Type GB/T
Cable Length 5m
LED Indicator Yes
Emergency Stop Yes
Installation Floor mounted
Protection Degree IP54
Dimensions (WxDxH) 90x60x160 cm
Weight < 350kg
Working Temperature -25℃ to +65℃
Power Factor ≥0.99
